Realtime Voice (Speech-to-Speech)

A realtime-capable AI profile can hold a live, spoken conversation — audio in, audio out — while still honoring everything a text profile gives you: system message, tools, data sources, and turn persistence. The audio is carried over WebRTC when available, falling back to WebSocket automatically.

Overview

When a profile's chat mode is Realtime and its deployment is a realtime (speech-to-speech) model, the chat UI switches from text input to a live voice session. The browser captures the microphone, streams it to the server, and plays the assistant's spoken reply back — continuously, so the user can interrupt (barge-in) mid-sentence.

Two transports carry that audio. The application selects between them automatically; there is no user-facing transport switch:

Transport	When it is used	Echo handling
WebRTC (server-relay)	Primary — whenever the server advertises it and the browser supports RTCPeerConnection, and the peer connects	The browser's acoustic echo canceller (AEC) keeps the mic open (full-duplex)
WebSocket (PCM over SignalR)	Fallback — when WebRTC can't connect (blocked UDP, no TURN, unsupported browser)	Browser AEC still applies to the played-back audio; barge-in off additionally mutes the mic while the assistant speaks

Providers without a speech-to-speech model

Most providers do not ship a speech-to-speech model. A cascaded realtime deployment serves the same experience by chaining three deployments you already have — one that transcribes, one that reasons, and one that speaks:

mic ──▶ realtime speech-to-text ──▶ chat (tools, data sources) ──▶ text-to-speech ──▶ speaker

Everything above the client is unchanged: a cascaded deployment produces the same realtime messages a native provider does, so the orchestrator, the chat UI, transcripts, and turn persistence all behave identically. The legs may come from different vendors — transcribe with one, reason with another, speak with a third.

Configure it by storing CascadedRealtimeMetadata on a deployment that also declares the realtime feature:

var deployment = await deploymentManager.NewAsync("cascaded-voice", clientName);

deployment.Alter<CascadedRealtimeMetadata>(cascade =>
{
    cascade.SpeechToTextDeploymentName = "elevenlabs-scribe";
    cascade.ChatDeploymentName = "gpt-4o";
    cascade.TextToSpeechDeploymentName = "elevenlabs-tts";
});

deployment.Alter<AIDeploymentMetadata>(metadata =>
{
    metadata.Features = [AIDeploymentFeatureNames.Realtime];
});

What to expect from each leg:

• Speech-to-text must expose a realtime client that supports a transcription session. It hears the user continuously; a committed transcript is what ends the user's turn and starts the reply. It transcribes with its own deployment's model, not the one a native realtime session would name.

• Chat produces the reply. Tools, data sources, and the profile's system message are applied here, so a cascaded session keeps every capability a text profile has. Function invocation is applied automatically.

• Text-to-speech speaks the reply. The reply is spoken a sentence at a time so audio starts playing while the model is still writing, and the voice picker for the deployment lists this leg's voices.

  It must answer with raw PCM at the session's output sample rate — audio/L16 or audio/pcm. Realtime audio is played as headerless samples, so a reply encoded as MP3 or wrapped in a WAV container would be played as noise. The session refuses anything else rather than emitting it, naming the format it was given. Providers are asked for Pcm<rate> (for example Pcm24000); a provider that cannot produce raw PCM cannot serve this leg.

Two differences from a native speech-to-speech model are worth planning for. Latency is higher, because a turn passes through three services instead of one. And interruption is driven by transcription: when the user speaks over the assistant, the first partial transcript cancels the in-flight reply and tells the client to drop the audio it has buffered, so barge-in responds as fast as the transcriber reports speech.

Architecture: server-relay WebRTC

The realtime orchestrator, tool loop, system-prompt injection, and persistence are transport-agnostic. WebRTC swaps only the two audio boundaries; the server still drives the provider session.

Browser ──WebRTC/Opus──▶ Hub (SIPSorcery peer) ─decode→PCM16(24k)─▶ Runner ──WS/PCM──▶ Provider
Browser ◀─WebRTC/Opus── Hub (WebRTC sink)     ◀─encode←PCM16(24k)── Runner ◀───────────── (same runner)

• The browser peers with the application's hub, not the model provider. The hub keeps talking to the provider over the existing WebSocket, so WebRTC works with any realtime provider without provider-side WebRTC.
• Transcripts, errors, and speech events stay on SignalR. The WebRTC path carries audio only; the SignalR connection is also used for WebRTC signaling (SDP offer/answer and ICE candidates).
• Audio crosses the boundary as PCM16 @ 24 kHz mono. SIPSorcery handles ICE/DTLS/SRTP/RTP and Concentus handles Opus. Assistant audio is encoded at 24 kHz, which browsers decode correctly at their native 48 kHz. Microphone audio is decoded at 48 kHz and downsampled to 24 kHz by the peer itself: asking Concentus to decode straight to 24 kHz attenuates the output by roughly 40 dB (a full-scale voice arrived at about −37 dBFS, below the provider's speech detection), which is what made sessions sit at Listening without ever answering.

Enabling the WebRTC transport

The transport lives in the CrestApps.Core.AI.WebRTC package. Register it during startup:

builder.Services.AddWebRtcRealtimeTransport();

When this service is registered, the realtime hubs offer WebRTC as the primary transport and the chat views advertise the capability to the client. If it is not registered, realtime voice still works — it simply uses the WebSocket transport everywhere. This is an application/deployment decision, not a user setting.

Both realtime hosts support it:

• Chat Interactions — ChatInteractionHub.
• AI Chat — AIChatHubCore (profile chat and the embedded chat widget).

Transport selection and fallback

Selection happens once, at connect time — audio is never migrated mid-session:

1. If WebRTC is advertised and the browser supports it, the client requests the mic, asks the hub for the ICE servers (GetRealtimeIceServers), creates an RTCPeerConnection with them, sends its SDP offer to the hub, and applies the answer.
2. If the peer reaches a connected state, the realtime session starts over WebRTC.
3. If the peer does not connect within ~8 seconds, or the connection/ICE state fails, the client tears the attempt down and restarts on the WebSocket transport.

The ICE servers are fetched per session rather than embedded in the page, so ephemeral TURN credentials are always fresh — a page left open longer than the credential lifetime would otherwise hand the browser a dead credential.

A post-connect drop simply ends the session; it does not attempt to migrate to WebSocket.

Session lifecycle events

The server owns the session's lifecycle and reports it to the browser over a single client method, ReceiveRealtimeEvent(identifier, type, payload):

Event	Meaning
session_ready	The provider session is open; the client moves from connecting to listening.
speech_started	The provider heard the user. With barge-in on, the client stops playback immediately.
playback_flush	Buffered assistant audio has been superseded and must be dropped.
user_turn_pending	An utterance was captured and is being transcribed; the client shows a placeholder in the right place.
user_turn_dropped	That utterance produced nothing worth showing; the client removes its placeholder.
session_ended	The session is over (completed, cancelled, idle, or error); the client releases the microphone.

This matters most on the WebSocket transport, where the provider streams a reply faster than real time and several seconds of it are already scheduled in the browser's Web Audio graph: without a server-driven flush the interrupted reply plays to the end and the new one is appended behind it. session_ended is what stops a browser streaming audio into a session the server has already torn down.

Acoustic echo cancellation (open rooms)

The reason to prefer WebRTC is acoustic echo cancellation. In an open room (external speakers + an open mic, e.g. a webcam mic on a monitor) the assistant's voice travels through the air back into the microphone. Without cancellation, the model hears — and answers — itself.

To get reliable AEC, the client:

• Requests echoCancellation: true on the microphone.
• Renders the assistant's audio into an <audio> element routed via setSinkId(...) to the communications sink (Chromium) or, failing that, the concrete device the default alias points at. Rendering there is what couples playback with the microphone's echo canceller as a proper reference. Browsers that expose neither alias — Firefox lists only concrete outputs — are left on their own default, because guessing a device there routed the assistant to whatever happened to be enumerated first (often an HDMI monitor) and it appeared silent.

Both Chrome and Firefox include browser-rendered audio in the echo canceller's reference, so the WebSocket path is cancellable too; what WebRTC adds is the communications-mode coupling on Windows/Chromium and the jitter buffer's stable timing.

If the operating system's default output device is not the speakers the user actually hears, playback is routed there — so the default playback device should be the user's real speakers.

The microphone gate

Echo cancellation alone still leaves residual echo that the provider's voice-activity detection can mistake for speech (which is how a model ends up answering itself, and how a transcriber invents phantom "Thank you" turns). So the outbound microphone is gated: it is silent unless the user is genuinely speaking.

The gate runs in an AudioWorklet on the audio thread, which matters for correctness as much as for quality — requestAnimationFrame is paused for hidden documents, so a gate driven from it freezes the moment the user switches tabs, and a gate frozen closed means they are never heard again.

It decides in dBFS against a noise floor it tracks continuously (falling fast, rising slowly), rather than against a fixed level: a quiet webcam microphone and a loud conference room need very different absolute thresholds but the same relative one. The gated signal is delayed ~80 ms so the gate is already open when the first consonant arrives — without that, every utterance lost its opening sound, which is exactly what degrades transcription.

There are no user-facing gate modes or thresholds; everything the gate needs it measures for itself. The part that makes open speakers work is the echo return level: while the assistant is audible and the gate is shut, the gate learns how loud the assistant's own voice comes back into the microphone (relative to the assistant's level) after echo cancellation has done what it can. From then on, while the assistant is audible, only a voice clearly louder than that expected echo — sustained for a quarter of a second — counts as the user interrupting. With a headset the expected echo is the room floor and interruptions are cheap; with loud speakers on the desk it is high and the gate simply waits its turn, which is the honest behaviour for that room. The estimate warms up within the first reply and follows slowly afterwards, so a user interrupting cannot be mistaken for echo in the time it takes to confirm them, and turning the volume down is noticed within a couple of seconds. "The assistant is speaking" carries a short hangover so the gate does not re-open in every gap between its words.

The same gate runs on both transports, so the WebSocket fallback is not the one path on which the model can hear its own echo.

Playback quality

Assistant audio is Opus-encoded in CELT-only mode (the transform half of Opus, the one it uses for music) at 96 kbps VBR, complexity 10, with inter-frame prediction disabled so every frame decodes on its own. The encoder's defaults would land at ~16 kbps in the hybrid mode, which is telephone quality, and the hybrid mode's SILK layer re-synthesises everything below 8 kHz with a quality that varies from phoneme to phoneme. Prediction is off because the browser's decoder does not see one continuous stream: it sees pre-encoded comfort silence before each reply and across gaps, and packet-loss concealment where a slot went unsent, and a frame delta-coded against a state the decoder never saw comes out at the wrong level (measured on a recorded reply: an error as large as the signal itself in the first frames after such a splice; with prediction off, ~15 dB below it). In-band FEC is off: it exists only in the SILK modes, and asking for it with an expected loss rate is what forced the hybrid mode.

The audio itself is played exactly as the provider produced it: every sample that arrives is framed, encoded and sent in order, and nothing on the way to the browser resamples, stretches or trims it. What the browser's jitter buffer reacts to is packet timing. A packet that arrives late relative to its RTP timestamp makes the buffer add delay and then speed speech up to shrink that delay again, which users hear as words rushing for a moment. The peer therefore paces frames from a dedicated above-normal-priority thread (a timer callback on Windows fires on a ~16 ms grid and runs on a thread pool that builds and test runs in the same process starve), asks Windows for 1 ms timer resolution while a peer is alive, and sends exactly one frame per 20 ms slot. The RTP timestamp is driven by the wall clock rather than by what was sent: every slot owns a frame's worth of timestamp whether a frame went out in it or not, so a frame is never late against its own timestamp and the browser never has to catch up. A slot with nothing to send — the provider stalled mid-reply, or the pacing thread was not scheduled — is left to the browser's packet-loss concealment for up to 80 ms and then filled with comfort silence: a short gap the browser forgets, not a delay the rest of the reply carries. Because the provider delivers audio in bursts of up to a second with pauses between them, a reply is buffered ~300 ms (400 ms at most) before it is released and briefly again (200 ms at most) when it resumes after a stall. The client, where the browser supports RTCRtpReceiver.jitterBufferTarget, pins the receiver's cushion at 150 ms so ordinary network jitter lands inside it instead of making the buffer re-adapt.

Two measurements exist for this. The server logs, when a peer closes, how many gap frames landed inside replies (provider stalls), how many pacing slots were given up (thread stalls), how many provider samples came in versus were encoded, and the largest provider chunk seen. In the browser, CoreAIRealtime.activeController.getTransportStats() returns the receiver's own counters — packets lost, jitter, jitter-buffer delay, concealment, samples inserted or removed by time-stretching — which is the first thing to read if playback ever sounds choppy; the live end-to-end check logs them and can also record what the browser plays (REALTIME_E2E_RECORD=1). A 35-second reply measured 0 packets lost, 0 ms jitter, 0 concealment events and 0 accelerated samples in both Chrome and Firefox, with the jitter buffer sitting at its 150 ms target.

Turn detection

The provider decides when the user has finished speaking. By default the session asks for semantic turn detection (turn_detection.type = semantic_vad): the model judges whether the utterance is complete, so a pause for thought in the middle of a question does not make the assistant answer the first half of it. This is the single biggest difference between a conversation that feels natural and one that talks over the user. If a deployment rejects semantic detection, the runner switches the session to plain server VAD (a silence timer) in place and the conversation continues.

Both the algorithm and the semantic eagerness are configurable under CrestApps:AI:RealtimeTransport (TurnDetectionType, TurnDetectionEagerness). The gate above stays open for two seconds after the user's level drops, comfortably longer than any pause the detector is willing to wait through, because the gate emits digital silence when it closes and whichever of the two expires first is what actually ends the turn.

Voice profiles: choosing tools

A voice agent is only as reliable as its tool list is short. Every tool a realtime session carries sits in the model's context on every turn of the conversation — not once per request, as in chat — and a model picks well from a handful of clearly distinct tools and poorly from a catalog. This is how every voice-agent platform works, and OpenAI's own realtime guidance says the same: curate a small, explicit tool set per agent. Nobody ships a catalog into a voice loop.

Pick the tools on the profile. A customer-service voice profile with validate_customer, lookup_account, update_customer_info and the automatic knowledge base search is four to six tools. That is the common case, and it already works — select them on the profile's Tools tab and nothing more is needed.

Take tools from MCP connections individually. An MCP server routinely exposes dozens of tools. Rather than attaching the whole connection, untick Use all tools under it and choose the few this profile needs. A profile saved before this existed — or with the switch left on — takes every tool the connection offers, exactly as before. An empty selection keeps the connection for its prompts and resources but contributes no tools.

What makes the tools reliable

Tool count is rarely what breaks a customer-service voice agent in practice. These are:

1. Ordering enforced by the tool, not the prompt. The model must not call update_customer_info before validate_customer has succeeded. Instructions alone will not guarantee it — models skip steps under conversational pressure. Have validate_customer record a verified flag in AIInvocationScope.Current.Items, and have every mutating tool read it and refuse, with a short spoken-friendly message, when it is absent. The scope lives for the whole session, so the flag does too.
2. Confirm before writes. "I'll update your address to 12 Oak Street — is that right?" Misheard digits are the dominant voice failure, and this is the standard defence. It belongs in the system prompt of any profile with mutating tools.
3. Tool results written to be spoken. The model reads results aloud. A tool that returns a JSON blob produces a robotic answer or a stumble; one that returns "Account found: Jane Doe, premium plan, last payment March 3." produces a sentence. Audit any tool a voice profile will use for output shaped for a chat window.
4. Distinct names and descriptions. With a small set this is the whole selection problem. lookup_account, find_customer and get_customer_details side by side is how the model picks the wrong one.

The safety net

If a profile still resolves more tools than chat's own scoping threshold (DefaultOrchestratorOptions.ScopingThreshold, default 30), the realtime orchestrator trims the set at session open — by token relevance to the profile's instructions, the same lightweight scoring the chat orchestrator uses, capped at InitialToolCount (default 20) plus any tool that must be kept (the knowledge base search, and anything another tool depends on). It logs a warning naming the profile and the tools the model will not see:

warn: Realtime session for 'AIProfile' resolved 42 tool(s), above the 30 a session carries well.
      Scoped to 21 by relevance to the profile's instructions; the model will not see: [...].
      Curate the profile's tools — or select fewer tools from its MCP connections — so this cut is not needed.

Treat that line as a to-do, not a feature. Chat can re-scope on every request because it has the user's message; a voice session cannot without deferring every reply, so this one decision has to hold for the whole conversation. A curated profile never triggers it.

For breadth: hand off, don't grow the list

When a business genuinely needs sixty tools across billing, shipping and returns, the answer is not a longer list. It is a small triage agent that hands off — "transfer to billing" is itself a tool, and calling it swaps the session's instructions and tools to the specialist's small set. Each specialist stays short and reliable. This is how OpenAI's own realtime agent examples are structured; the framework does not implement handoffs yet, but every piece above is designed so that it can.

Knowledge base grounding

A text completion retrieves from the knowledge base before the model runs: the profile's data source is searched with the user's message and the matching chunks are placed in the system message, so the model cannot fail to see them. A realtime session has no such moment — it opens before anyone has spoken, so there is no query to search with.

Retrieval therefore runs once per spoken turn. When a profile has a data source (or session documents) attached and preemptive RAG is enabled site-wide, the session is opened with turn_detection.create_response = false, and each turn goes:

user stops speaking → provider commits + transcribes the turn
                    → host searches the knowledge base with that transcript
                    → retrieved chunks are added as a system conversation item
                    → host sends response.create → the model answers from them

This runs the same IPreemptiveRagHandler pipeline the text path uses — data source, documents, memory — so citations, IsInScope strictness, top-N and filters all behave identically, and a grounded answer carries its [doc:n] references into the transcript like any other. Extend it by registering an IPreemptiveRagHandler, or replace the whole policy with your own IRealtimeTurnGrounding.

Three consequences worth knowing:

• A grounded turn is slower to start, by one vector search. The provider no longer replies the instant it stops hearing the user; it waits for the transcript and the search. Sessions without a knowledge base are untouched and keep the provider's own immediate replies.
• Retrieval uses the utterance verbatim. The text path first rewrites the message into focused queries with a utility LLM call; that is skipped here, because it would add a second round-trip to every spoken turn and it earns its cost by resolving follow-ups against conversation history, which a per-turn realtime context does not carry.
• The search tool is still advertised, and every tool stays available on every turn. The answer's response.create carries no tool overrides, so the session's full toolset and tool_choice: auto apply exactly as they do without grounding. Retrieval gives the model the knowledge up front; the tool lets it go looking for more.

Covering the wait

Silence between the user finishing and the assistant starting reads as a broken assistant long before it reads as a thoughtful one. So retrieval races a timer: if the search returns before GroundingAcknowledgementDelayMs (default 700 ms) the answer comes straight back with nothing in front of it. If it does not, the assistant says one short line — "let me look that up" — while the search finishes.

That acknowledgement is requested out of band (conversation: "none"), with tools off and a small token cap. It is spoken, but never added to the conversation, never streamed as an assistant turn, and never persisted: the model does not later see itself having said it, and it does not appear in history. A fast index never pays for it; only a slow one does.

The muteness backstop

A grounded session speaks only when the server asks it to, which means a swallowed turn — one that produces neither a transcript nor a transcription failure — would leave the assistant mute for the rest of the conversation. Every path therefore ends in a response request, including the failure paths, and GroundingResponseWatchdogSeconds (default 15) is the backstop for the paths that do not exist yet. An ungrounded answer is a poor answer; a silent assistant is a broken product, so the watchdog always prefers the former. It logs a warning when it fires — if you see that line, something upstream is dropping turns.

Switches

Setting	Default	Effect
Admin → Settings → Enable preemptive RAG	on	Governs both text and voice. Off means the model decides when to search, everywhere.
CrestApps:AI:RealtimeTransport:EnableKnowledgeGrounding	true	Voice only. Off leaves text grounded and returns voice to the search tool, which starts speaking sooner and grounds less reliably.
CrestApps:AI:RealtimeTransport:GroundingAcknowledgementDelayMs	700	How long retrieval may run before the wait is covered aloud. 0 never speaks one.
CrestApps:AI:RealtimeTransport:GroundingResponseWatchdogSeconds	15	How long a committed turn may go unanswered before a reply is requested anyway. 0 disables the backstop.

The knowledge base is only as reachable as the deployment that calls it. If the deployment behind the session — for a cascade, its chat leg — does not declare the toolCalling feature, the tools resolved for the session are stripped before the model sees them, and the orchestrator logs an error naming the deployment. Starting a session with tools but without an ambient AIInvocationScope now throws rather than letting every tool call return an error string the model would relay as "I don't have that information".

The vector store has to be configured

Grounding is only as good as the index behind it. A data source resolves its content manager from its index profile's provider, so the connection for that provider must be configured in the host. An unconfigured one throws on every search, and the profile then answers as though its knowledge base were empty — which for an IsInScope profile means a confident "that information is not available in the current data sources" on every question, with nothing in the grounding log to suggest a misconfiguration.

Locally the Aspire AppHost supplies this: it provisions pgvector/pgvector:pg16 and injects CrestApps__PostgreSQL__ConnectionString into both sample hosts. Running a sample host on its own does not, so a profile whose index profile is PostgreSQL retrieves nothing until CrestApps:PostgreSQL:ConnectionString is set another way.

Turn bookkeeping

Two things about realtime turns are not obvious and shape how the transcript is built.

Input-audio transcription lags the spoken reply. The model answers the audio before the transcriber has finished with it, so a user turn created when its text arrives is stamped after the assistant's answer and history reloads with the prompt underneath its own reply. The turn is therefore created when the provider commits the utterance — user_turn_pending puts a placeholder in the conversation at that moment — and its text is filled in later, keeping the original timestamp.

Utterances and transcripts are paired by the provider's item id, never by arrival order. Transcription can fail outright, and with barge-in off some utterances are never answered at all; either one shifts an order-based pairing by one turn, which silently removes an answered prompt from the conversation.

With barge-in off, whether an utterance gets answered is decided when the provider commits it, not when speech starts — so an utterance that began over the assistant but committed after it finished is answered normally.

Interruptions

When the user barges in, the server tells the provider how much of the reply was actually heard (conversation.item.truncate), so the rest is removed from the model's context. Without it the model believes it delivered the whole answer, and follow-ups like "what did you just say?" reflect text the user never heard.

How much was heard is known exactly on WebRTC, where the peer reports the audio it still has queued. On the WebSocket transport the server only knows what it sent, so the truncation is an over-estimate that trims nothing — no worse than not truncating at all.

Session limits

A realtime session holds an open (billed) provider connection whether or not anyone is talking, so two guard rails bound what a single session can cost. Both are on by default and both are configurable.

Idle timeout. A session ends after IdleTimeoutSeconds in which neither the user nor the assistant said anything (30 by default; 0 disables it), reporting session_ended with reason idle. The clock is reset by both sides of the conversation — user speech, a response starting, each chunk of assistant audio, a response finishing — so a spoken answer longer than the window never trips it; only real silence does. That is what makes a window as short as 30 seconds safe: a forgotten tab is closed in half a minute rather than ten.

The provider running out of things to send is not the listener running out of things to hear. A deployment that synthesizes faster than real time — a cascaded one, typically — hands a whole reply over in moments and leaves most of it queued, so the last audio event can be a full window in the past while the assistant is still mid-sentence. When the window expires the timeout therefore checks what is still waiting to be played, waits that out, and starts the window again from there, measuring the silence from when the listener actually stopped hearing the reply. Every transport reports that (PendingPlaybackMs): WebRTC from the paced queue on the server side of the peer, and the WebSocket transport from the clock, since forwarding a chunk does not play it — the queue simply moves into the browser, which plays it at real time out of its own audio graph. A queue that has not moved at all by the time it has been waited out is nobody listening — a transport whose pacing stopped with audio still on it — and ends the session rather than holding it open on a loop.

The same applies to the user. Speech-started and the commit at the end of an utterance are the only events an utterance raises, and nothing at all arrives in between, so an uncommitted utterance holds the timeout off while someone is mid-sentence: a spoken answer longer than the window is not cut off either. That hold is bounded at two minutes, since a commit that never arrives is a dropped turn rather than someone still talking.

Maximum duration. A session ends after MaxSessionDurationSeconds however busy it has been (300 — five minutes — by default; 0 disables it), reporting session_ended with reason max_duration. The idle timeout only catches a session nobody is using; this is the backstop for one that is genuinely held open, including a runaway page whose audio keeps the idle clock warm. It bounds how long one session runs, not how long someone may talk: the client says the limit was reached and offers to start another immediately.

Both reasons are reported to the browser, which releases the microphone, explains what happened, and shows a Resume button.

User controls

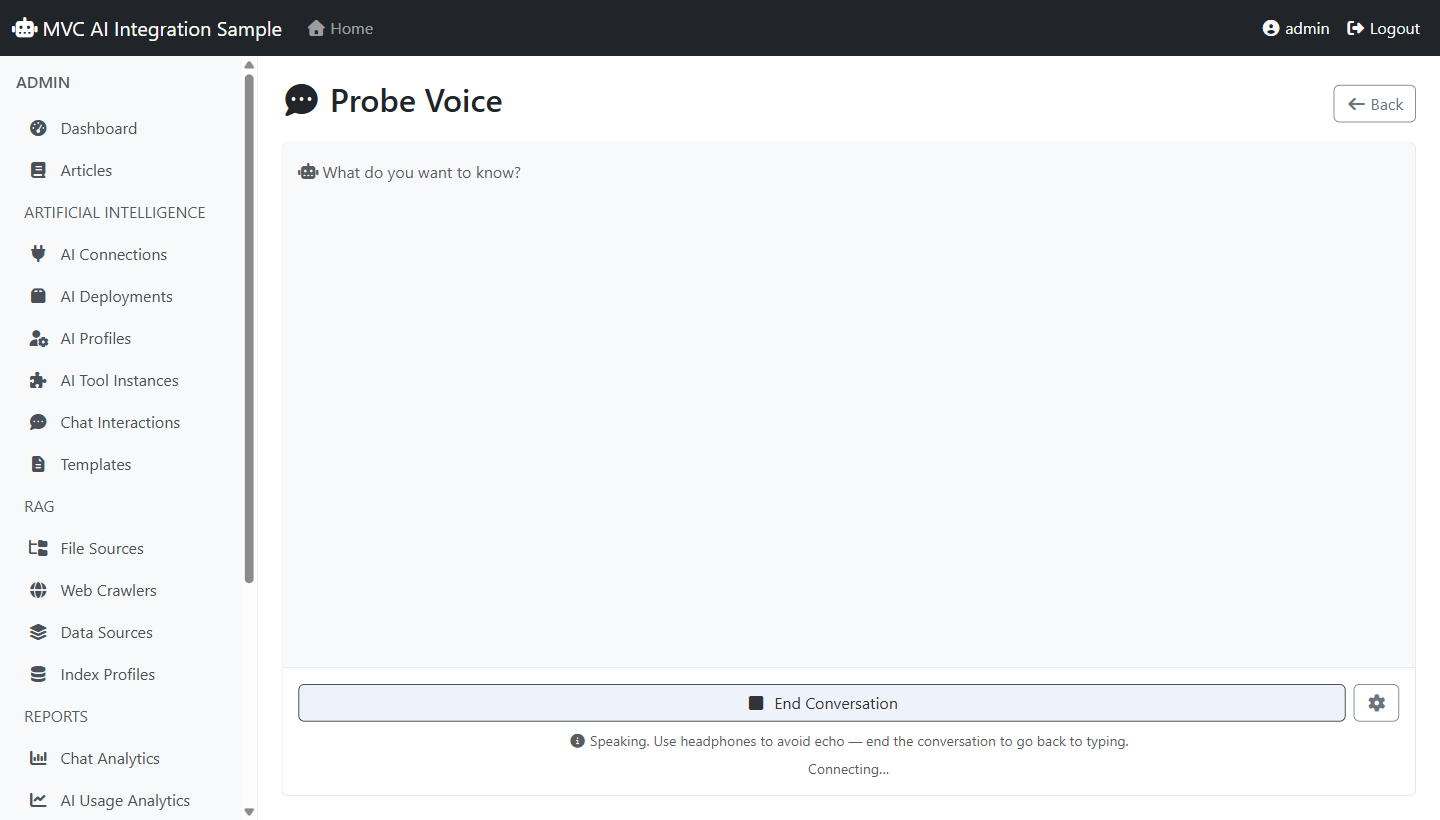

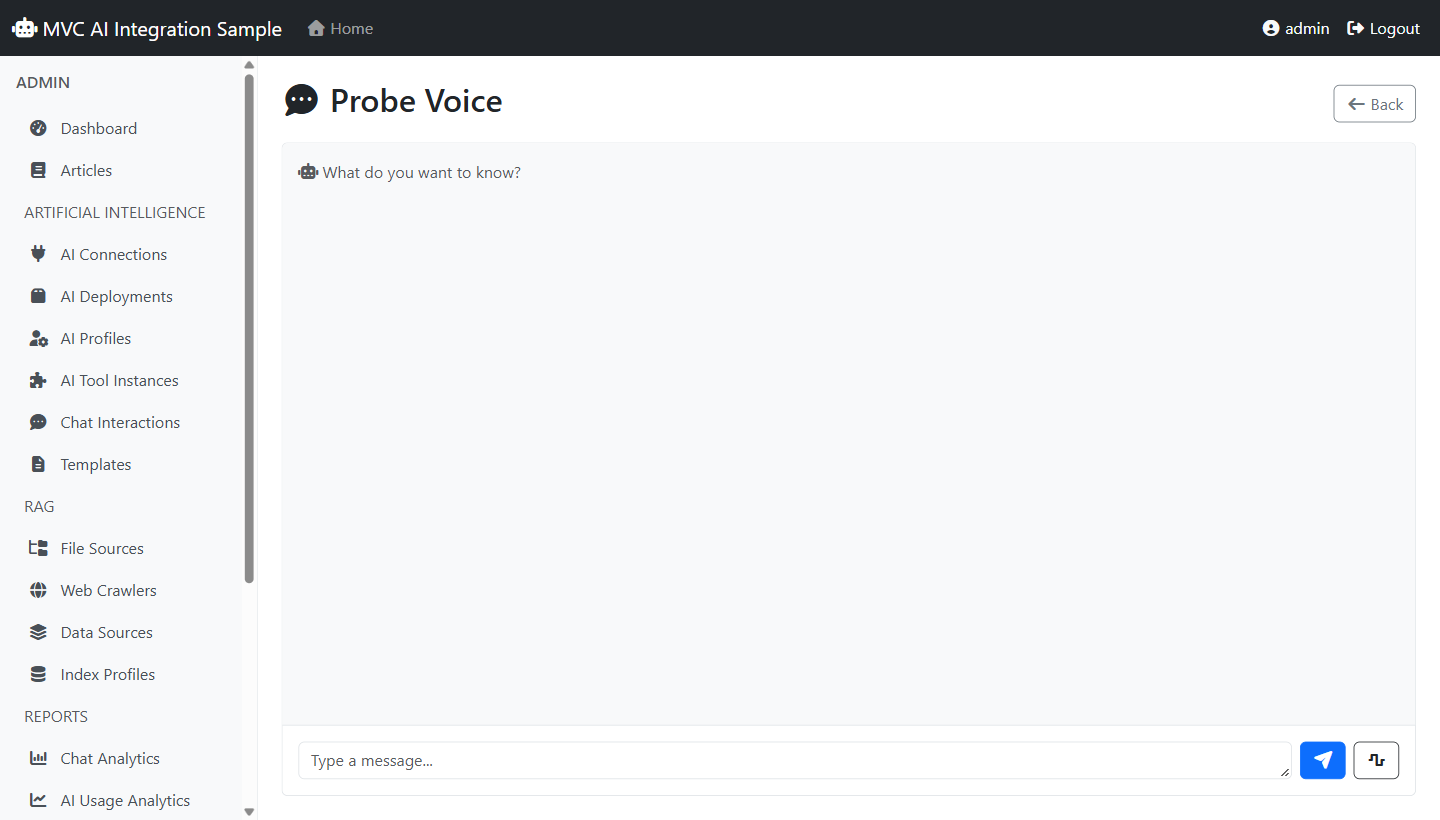

A realtime session is audio-only, so the controller hides the host's message box, send button, and speech-to-text microphone button while one is running, leaving Start speaking as the only way in. It hides whatever the host hands it: pass input, sendButton, and micButton in selectors alongside realtimeButton, and a host that renders its own realtime surface can hide them server-side too, which avoids showing them for the instant before the page's script runs.

The settings popover is deliberately short. A user should be able to press Start speaking and talk, in any room, without first understanding acoustics; everything that used to be a knob (echo margins, gate modes, turn-detection timing, audio-setup presets, an echo self-test) is measured or decided automatically now. What remains are per-device preferences (saved in the browser), independent of the transport:

• Microphone and Speaker. Automatic speaker routing follows the preference above; the picker exists because Windows keeps a separate Default Device and Default Communications Device, so the sink that gives the best echo cancellation is not always the one the user is listening to. On Firefox the browser's own picker is used, since it exposes no output list until the user chooses.
• Assistant volume — lowers playback; this also reduces the echo the canceller and the gate must handle.
• Language — Automatic sends no language hint at all, so the transcriber detects it and a bilingual user is not pinned to their browser's locale. Choosing a language pins both transcription and the assistant's replies to it.
• Allow interruptions — on (default): talk over the assistant to interrupt it. The gate's learned echo level is what keeps the assistant's own voice from counting as an interruption, so this is safe with a headset, laptop speakers and most desk speakers alike. Turn it off only if the assistant keeps hearing itself: the microphone is then muted while it speaks (half duplex).
• Push-to-talk — hold Space (or the button) to open the mic; for very noisy places.

Noise suppression and automatic gain are always on. Interruptions apply to a conversation already in progress: they are enforced by the browser's gate, the server's input pump and the provider's turn detection at once, and changing only one of them leaves the three disagreeing, so a change is sent to all three.

Configuration: STUN and TURN

ICE (NAT traversal) servers are configured under CrestApps:AI:RealtimeTransport and bound to RealtimeTransportOptions. STUN enables direct connectivity through most home/office NATs. A TURN server is required for users behind strict/symmetric NATs or blocked UDP, where traffic must be relayed — without it, those users fall back to WebSocket.

STUN only (default)

With no configuration, a public STUN server is used so direct connections work out of the box:

{
  "CrestApps": {
    "AI": {
      "RealtimeTransport": {
        "StunUrls": [ "stun:stun.l.google.com:19302" ]
      }
    }
  }
}

TURN with ephemeral credentials (recommended for production)

Stand up coturn in use-auth-secret mode with a shared secret. The server then mints short-lived ephemeral credentials per session, so a long-lived TURN password never reaches the browser:

{
  "CrestApps": {
    "AI": {
      "RealtimeTransport": {
        "StunUrls": [ "stun:turn.example.com:3478" ],
        "TurnUrls": [ "turn:turn.example.com:3478", "turns:turn.example.com:5349" ],
        "TurnSecret": "the-same-secret-configured-in-coturn",
        "TurnCredentialTtlSeconds": 3600
      }
    }
  }
}

The credential is derived exactly as coturn's TURN REST API expects: the username is a UNIX expiry timestamp and the credential is Base64(HMAC-SHA1(secret, username)). Configure coturn with the matching secret, for example:

use-auth-secret
static-auth-secret=the-same-secret-configured-in-coturn
realm=turn.example.com

TURN with static credentials

For simpler setups you can use a long-lived username and password instead of a secret (less secure — prefer the ephemeral secret in production):

{
  "CrestApps": {
    "AI": {
      "RealtimeTransport": {
        "TurnUrls": [ "turn:turn.example.com:3478" ],
        "TurnUsername": "turn-user",
        "TurnCredential": "turn-password"
      }
    }
  }
}

If TurnUrls is set but neither a secret nor static credentials are provided, no TURN entry is offered (there would be nothing to authenticate with).

Static credentials are the wrong tool for a hosted TURN service. Cloudflare and Twilio issue credentials with a fixed lifetime — often 24 hours — so pasting a generated username and password here means realtime voice stops working the next day, and the failure is quiet: the relay is refused, ICE falls back, and callers behind a strict NAT simply get no audio. Use the section below instead.

TURN through Cloudflare Realtime

Cloudflare does not expose a shared secret, so credentials cannot be signed locally the way coturn's use-auth-secret allows — they are issued by an API call. Register the provider and give it the TURN token:

services.AddCloudflareRealtimeTurn();

{
  "CrestApps": {
    "AI": {
      "RealtimeTransport": {
        "Cloudflare": {
          "TokenId": "<TURN Token ID>",
          "ApiToken": "<API token>",
          "TtlSeconds": 86400
        }
      }
    }
  }
}

Nothing here expires. The key and token are long-lived, and every credential a browser sees is minted on demand, so there is no rotation step to forget. Credentials are reused until they are halfway through TtlSeconds and then replaced, which means roughly two API calls per lifetime rather than one per connection, and a credential handed to a browser is always valid for at least as long again — no call can outlive the credentials it started with.

Cloudflare answers with a matrix rather than a list: STUN and TURN over UDP, TCP, and TLS, each on its standard port and again on a port chosen to slip through a restrictive firewall. That is more URLs than a browser wants — Chrome warns past five of them because it gathers against every one, and so does the peer on this side, which is handed the same list. The provider keeps the first URL Cloudflare lists for each scheme and transport and drops the rest, which leaves every route out of a network intact — direct, relayed over UDP, over TCP, and over TLS — while removing only the spare ports for relays that are already reachable. The URLs kept are Cloudflare's own, in Cloudflare's own order, and the credentials are minted for the whole matrix, so each one is authenticated by the credentials it ships with.

StunUrls and TurnUrls are ignored while Cloudflare is configured, because credentials issued for one relay do not authenticate against another. Narrowing applies only to what Cloudflare itself issued: servers a deployment names by hand are never trimmed, and never mixed in.

Two behaviours are worth knowing. While TokenId and ApiToken are unset the provider does nothing and whatever was configured above still applies, so registering it before the key exists is safe. And if Cloudflare cannot be reached, the credentials already issued keep being served — they are good for about half their lifetime — rather than dropping every caller to STUN only; the failure is logged and retried within 30 seconds.

Changing TokenId or ApiToken at runtime, from an administration screen or a rotating secret store, takes effect on the next connection: the options are watched and the cached credentials dropped.

Sourcing ICE servers from somewhere else

Both halves of a session — the list handed to the browser and the server-relay peer itself — resolve through IRealtimeIceServerProvider, so they can never disagree about which relay to use or which credentials to present. Implement it to reach any other TURN service:

public sealed class TwilioIceServerProvider : IRealtimeIceServerProvider
{
    public async ValueTask<IReadOnlyList<WebRtcIceServer>> GetIceServersAsync(CancellationToken cancellationToken = default)
    {
        // Mint credentials however the service requires, then return them.
    }
}

services.AddSingleton<IRealtimeIceServerProvider, TwilioIceServerProvider>();

The method is asynchronous precisely so an implementation may fetch credentials over the network. One that needs no I/O should return a completed ValueTask, which allocates nothing.

Options reference

Property	Purpose
EnableWebRtc	Whether WebRTC is offered to browsers. Defaults to true. Turn it off on hosts with no inbound UDP and no reachable TURN relay — otherwise every session waits out the connect timeout before falling back.
TurnDetectionType	semantic_vad (default) lets the model decide when the user has finished; server_vad ends the turn after a fixed silence. A deployment that rejects semantic detection is switched to server VAD automatically.
TurnDetectionEagerness	For semantic_vad: low, medium, high or auto (default). Lower waits longer for the user to continue.
IdleTimeoutSeconds	How long a session may go with neither side speaking before it ends. Defaults to 30; 0 disables it.
MaxSessionDurationSeconds	The longest a single session may run, however busy. Defaults to 300; 0 disables it.
StunUrls	STUN server URLs. Defaults to a public server when empty.
TurnUrls	TURN server URLs (turn:/turns:). Empty means no relay.
TurnSecret	coturn use-auth-secret shared secret; enables ephemeral credentials.
TurnCredentialTtlSeconds	Lifetime of a minted ephemeral credential (default 3600).
TurnUsername / TurnCredential	Static TURN credentials, used only when TurnSecret is unset. Not suitable for a hosted TURN service, whose credentials expire.
Cloudflare:TokenId / Cloudflare:ApiToken	Cloudflare Realtime TURN credentials, named as the dashboard shows them. When both are set, credentials are minted per lifetime and the STUN and TURN properties above are ignored.
Cloudflare:TtlSeconds	Lifetime requested for each Cloudflare credential (default 86400). Refreshed at half this.

Verifying which transport a session used

Testing

The browser half has its own suites, because the behaviour that matters — whether the microphone gate opens, whether playback stops, whether the microphone is released — cannot be reached from a server-side test:

npm run test:gate

Runs the gate's decision rules in Node against the same pure function the AudioWorklet uses. No browser, no audio, no timing: every threshold is asserted as a number.

npx playwright install chromium firefox
npm run test:client

Runs the client against a static harness page in Chromium and Firefox with fake media devices — no server, no SignalR connection and no AI provider are involved. It covers transport selection and fallback, the session state machine, and that the gate actually gates a live audio graph.

REALTIME_E2E_PROFILE_ID=<realtime profile id> REALTIME_E2E_PASSWORD=<password> \
REALTIME_E2E_WAV=<16-bit PCM WAV of a spoken question> \
npx playwright test --config tests/realtime-client/e2e/playwright.e2e.config.js --project=chromium
npx playwright test --config tests/realtime-client/e2e/playwright.e2e.config.js --project=firefox

A live end-to-end check against a running host and a real realtime deployment. The WAV becomes the microphone — Chromium plays it through its fake capture device; Firefox has no file-backed fake microphone, so the test replaces getUserMedia with a Web Audio graph playing the same file — and the test expects the spoken question to appear as the user's transcript and a reply to follow. This exercises the gate, the WebRTC transport (including SIPSorcery's interop with each browser), the provider's turn detection and the transcript pipeline together, and is the quickest way to confirm a deployment actually converses. REALTIME_E2E_BARGE_IN=false runs it with interruptions off. On Windows a suitable WAV can be produced with the built-in speech synthesizer (System.Speech.Synthesis.SpeechSynthesizer, 48 kHz, 16-bit, mono, with a couple of seconds of leading silence). The test logs the gate's live measurements, and the server logs the inbound peak amplitude every five seconds under CrestApps.Core.AI.WebRTC — between them a silent failure is explainable.

Diagnostics

On the server, the WebRTC peer logs its lifecycle (connection/ICE state, first inbound packet decoded, first assistant frame sent) under the CrestApps.Core.AI.WebRTC logger, and warns when the inbound microphone buffer overflows. The runner logs response start/completion and session end reasons under CrestApps.Core.AI.Chat.Realtime.RealtimeChatSessionRunner — including a warning when a session ran a whole conversation without the provider ever reporting user speech, which means that deployment's events are not recognised and barge-in cannot work for it.

Tracing knowledge grounding

To confirm grounding is working, raise CrestApps.Core.AI.Services.DefaultRealtimeTurnGrounding and CrestApps.Core.AI.Chat.Realtime to Debug. One healthy grounded turn looks like this:

info: Realtime session abc123: knowledge grounding is active. Replies are requested by the server
      after retrieval (acknowledgement after 700 ms, watchdog 15s).
dbug: Realtime knowledge grounding availability: True (dataSource=True, documents=False, handlers=True).
dbug: Realtime retrieval starting for utterance (31 chars) across 1 handler(s): DataSourcePreemptiveRagHandler.
dbug: Realtime retrieval returned 2841 chars and 3 citation(s) in 214 ms.
dbug: Realtime session abc123: retrieval finished in 219 ms and added context to the conversation.
dbug: Realtime session abc123: answer requested 221 ms after the transcript arrived.

What each line tells you:

• No "knowledge grounding is active" line — the session is not grounded. The availability line says why: dataSource=False, documents=False means nothing is attached to the profile; the two "grounding is off" lines name the switch that disabled it.
• "added nothing" — retrieval ran and the index returned nothing relevant for that utterance. The model still answers, and the search tool remains available to it.
• "found no relevant content" on every turn — check the index provider's own logger before concluding the corpus is thin. A store that cannot be reached fails inside its content manager, which logs the failure under its own name (PostgreSQLDataSourceContentManager, and its peers) and hands back an empty result. Grounding cannot tell that apart from a genuine miss, so it reports an ordinary empty turn while every knowledge question goes unanswered. PostgreSQL is not configured. A connection string is required. is the usual culprit; see The vector store has to be configured.
• "still running after 700 ms, so the wait is covered" (Information) — the index is slower than the acknowledgement deadline. This is the line that explains why some turns say "let me look that up" and others do not.
• "a committed turn produced no transcript within 15s" (Warning) — the backstop fired. The session recovered, but something upstream dropped a turn and it will keep happening.
• "does not declare the 'toolCalling' feature" (Error) — the deployment that would call the tools, or a cascade's chat leg, has them stripped before the model sees them. Fix the model's capability metadata.
• "resolved N tool(s), above the 30 a session carries well" (Warning) — the profile brings more tools than a voice session should carry, and the set was trimmed at session open. The line lists what the model will not see; curate the profile or select fewer tools from its MCP connections.
• "MCP connection '…': 3 of 40 tool(s) selected for this profile" (Debug, CrestApps.Core.AI.Mcp) — per-tool selection is in effect for that connection.

The orchestrator's own debug line reports the tool count and whether per-turn retrieval is on for the session.

In the browser, CoreAIRealtime's controller exposes getState() and getGateLevel() — the latter returns the gate's most recent measurement (level, tracked noise floor, whether it is open, whether the assistant is audible), which is the quickest way to tell "the mic is muted" apart from "the model is not responding".
